Universal cylindrical grinding


 CYLINDRICAL GRINDING OF STATORS, BEARINGS, GEARS

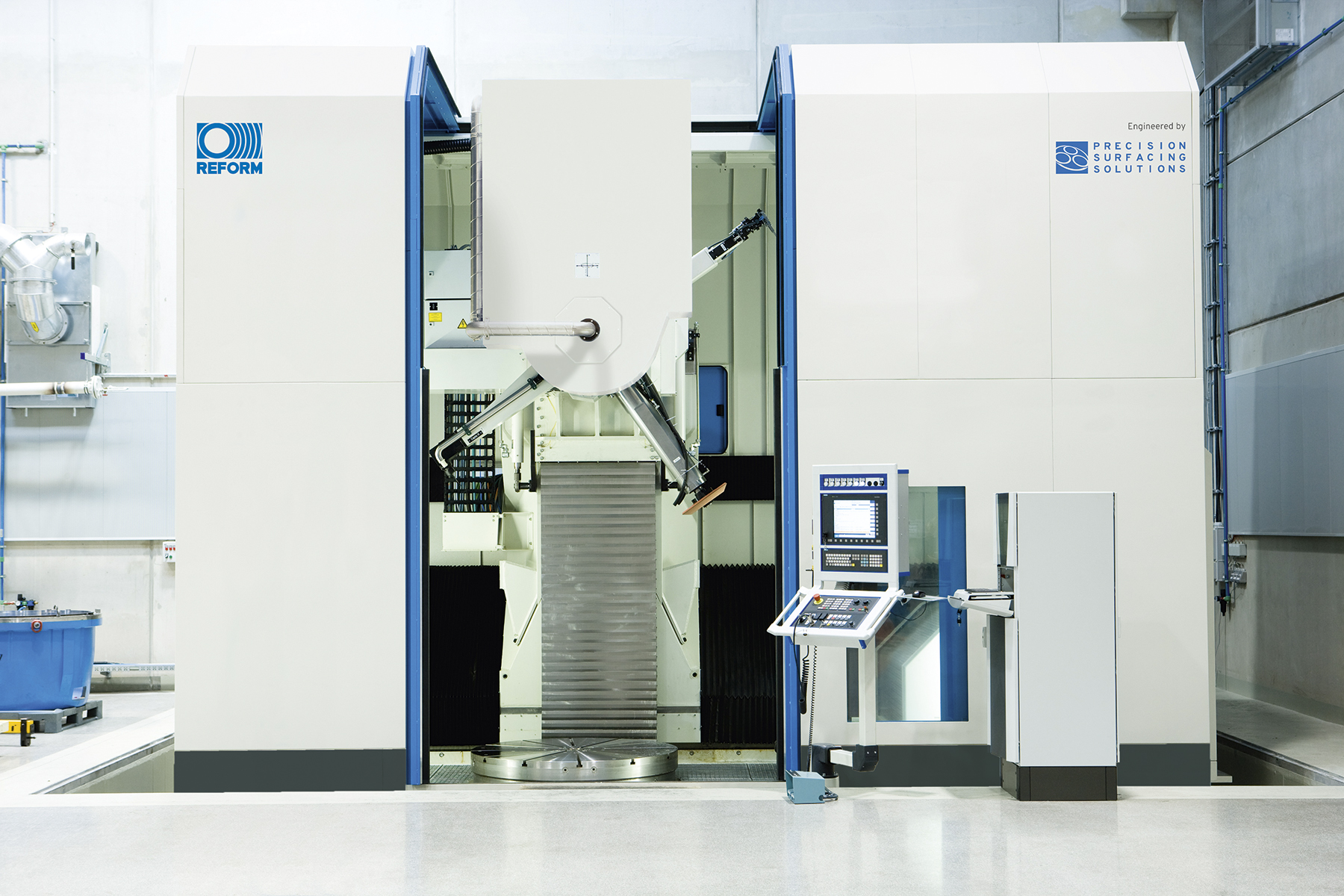

The Vertical Rotary Table Grinder Model TRIREX is a modular designed machine. The Vertical Rotary Table Grinder has a bigger vertical stroke, which allow the machine to process the required working envelope without having an adjustable rail or a compound slide. The Vertical Rotary Table Grinder consists of well proved modules. A long-term experience in the field of grinding with special machines guarantees the actual grinding technology. As to constructive lay-out the machine is state-of-the-art technology. Temperature stabilization through liquid-cooled spindles and torque motor and a bed flushing. Due to using CNC- and PC-control the control courses of the machine relating to the grinding programs can be extensively automated.

Important points include :

    • Control (Siemens or Fanuc)
    • Up to 5 axes CNC grinding center
    • Optional with turning and measuring option
    • High preassure deburring
    • Up to 4 spindles possible
    • Grinding capacities from 7,5 - 60 kW
    • Dressing spindle next to the rotary table
    • Tool changer
    • Work piece Loading
    • Zero point clamping system

Download DataSheet Trirex





Browse Rotary Table
1
TRIREX
Learn more
