Vertical Stator Grinder

The REFORM Vertical Grinder - for production of stators. The REFORM vertical grinding machines are equipped with a stationary rotary table. The multi-spindle head with 4 places can be equipped with the corresponding spindles according to costumer´s requirements. The MODIREX resp. TRIREX grinding machines are suitable for grinding of various engine assembly groups, like for example HPC stators. The machine can be equipped with different grinding spindles, deburr-/ brush spindles, milling spindles, rotating arms and measuring probes, depending of individual requirements.



MODIREX
Technical Data
max. table diameter up to 1200 mm (47,25")
max. swing diameter up to 1400 mm (55,1")
max. workpiece height up to 900 mm (35,4")

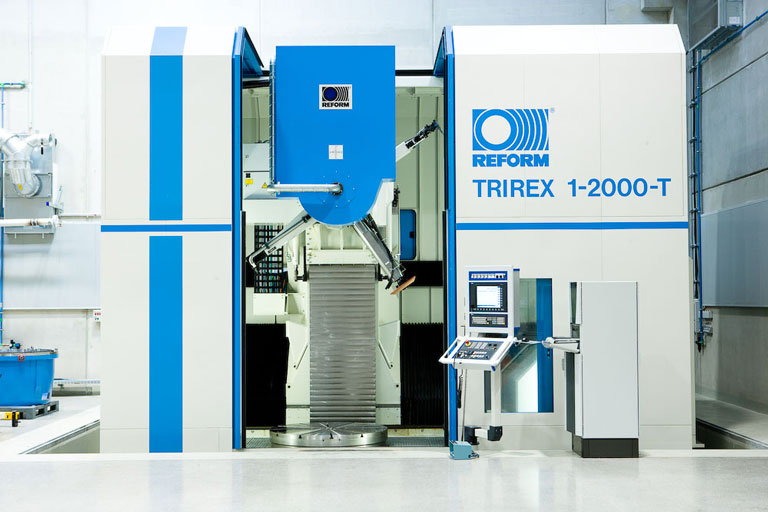

TRIREX
Technical Data
max. table diameter up to 1500 mm (59")
max. swing diameter up to 1800 mm (70,9")
max. workpiece height up to 1400 mm (55,1")



Functions:
  • external cylindrical grinding
  • deburring (brushing)
  • turning
  • measuring
